Motores de drones
Created with Pixso. DRONE MOTOR LN8313 120KV

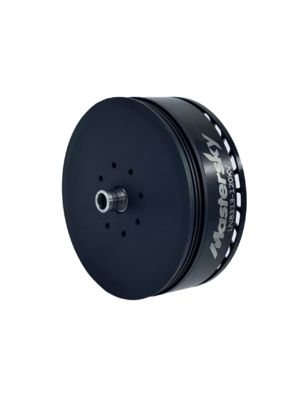

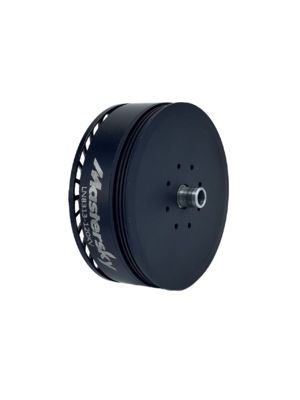

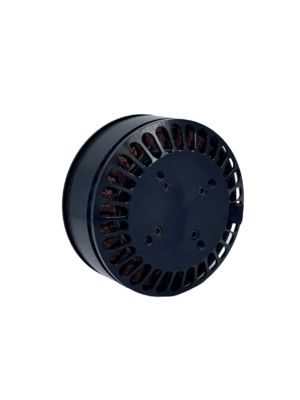

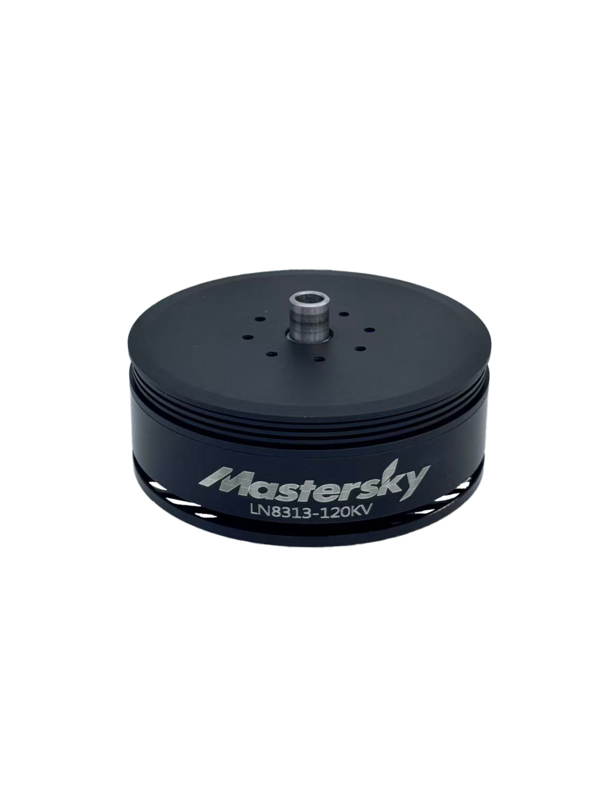

DRONE MOTOR LN8313 120KV

Nombre De La Marca: Retek
Número De Modelo: Los engranajes de acero
Moq: 1000pcs
Precio: Negociable
El Tiempo De Entrega: 10 días
Información Detallada
Lugar de origen:
PORCELANA
Certificación:
CCC,UL
Detalles de empaquetado:
25 piezas/cartón
Capacidad de la fuente:
10000pcs/mes
Descripción del Producto



This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​



  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
Un buen precio. en línea

Detalles De Productos

Created with Pixso. En casa. Created with Pixso. Productos Created with Pixso.
Motores de drones
Created with Pixso. DRONE MOTOR LN8313 120KV

DRONE MOTOR LN8313 120KV

Nombre De La Marca: Retek
Número De Modelo: Los engranajes de acero
Moq: 1000pcs
Precio: Negociable
Detalles Del Embalaje: 25 piezas/cartón
Información Detallada
Lugar de origen:
PORCELANA
Nombre de la marca:
Retek
Certificación:
CCC,UL
Número de modelo:
Los engranajes de acero
Cantidad de orden mínima:
1000pcs
Precio:
Negociable
Detalles de empaquetado:
25 piezas/cartón
Tiempo de entrega:
10 días
Capacidad de la fuente:
10000pcs/mes
Descripción del Producto



This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​



  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
